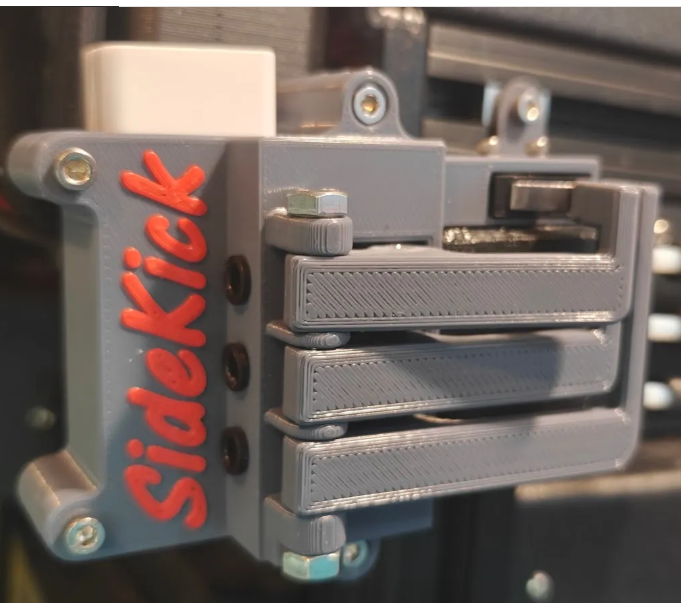

This multi-filament drive system was developed in response to strong user demand, but it wasn’t until a practical and compact solution was achieved that development truly began. The core innovation lies in using a single motor, battery, switch, and gear system to control all three filaments—efficiently integrated into a design that mounts neatly on the side of the XL printer.
A key objective throughout the design process was to reuse as many components as possible from the Bowden Speed Loader. While this helped streamline compatibility and reduce redundancy, several new parts were still required to achieve optimal performance and reliability.
The design goals evolved over time, but one principle remained constant: preserving the integrity of the original (OEM) hardware. This system is engineered to be installed and removed without requiring any significant modifications. Importantly, it does not require dismantling the printer or even unplugging the filament sensors, making it highly user-friendly and non-invasive.
As a battery-powered solution, convenience was another major focus. The battery is designed to be easily replaceable while the unit remains mounted (“in situ”), minimizing downtime and simplifying maintenance. Additionally, the entire assembly is securely mounted to the XL’s frame, ensuring stability during operation.

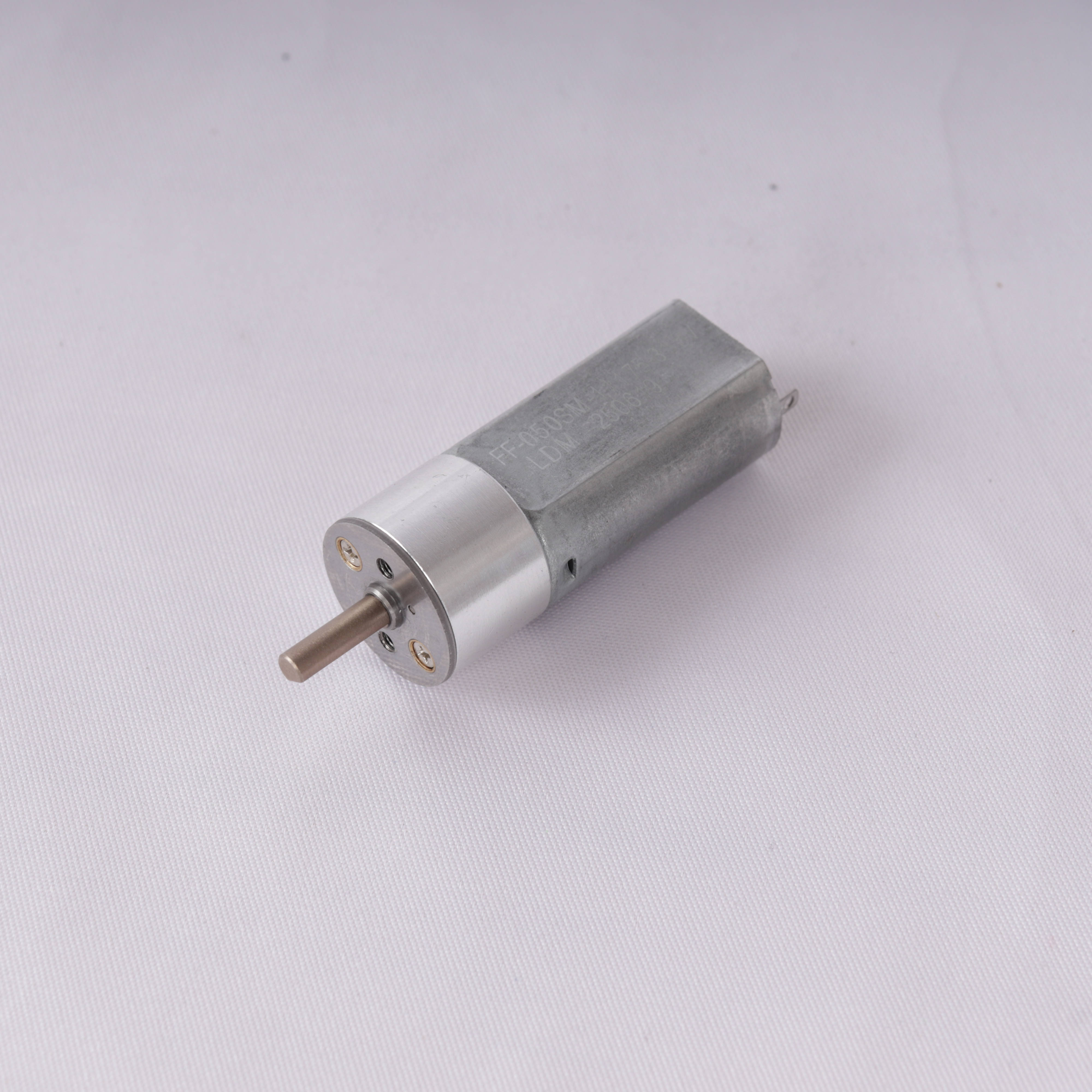

The system retains the proven GA12-N20 gear motor in its compact version, maintaining a balance between size and functionality. However, for users seeking enhanced performance, an alternative version has also been developed. This upgraded version utilizes a larger gear motor with increased speed and torque capabilities.

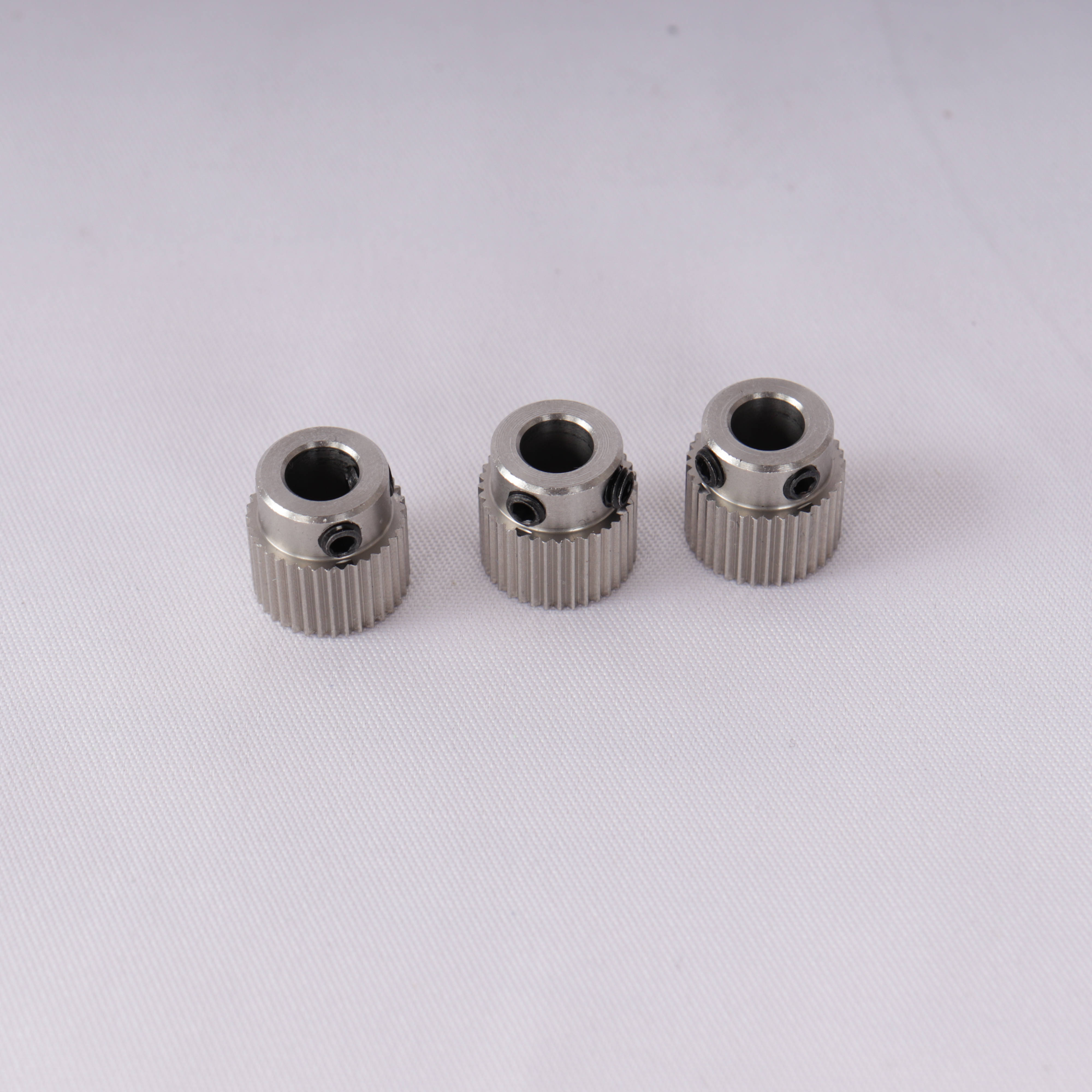

Due to the larger motor size, this version has a slightly increased footprint and cannot fit within the same compact space as the standard configuration. However, it offers several advantages. The motor is directly coupled to the extruder gears, eliminating the need for additional gear stages. This direct-drive approach reduces mechanical losses, improving both efficiency and responsiveness.

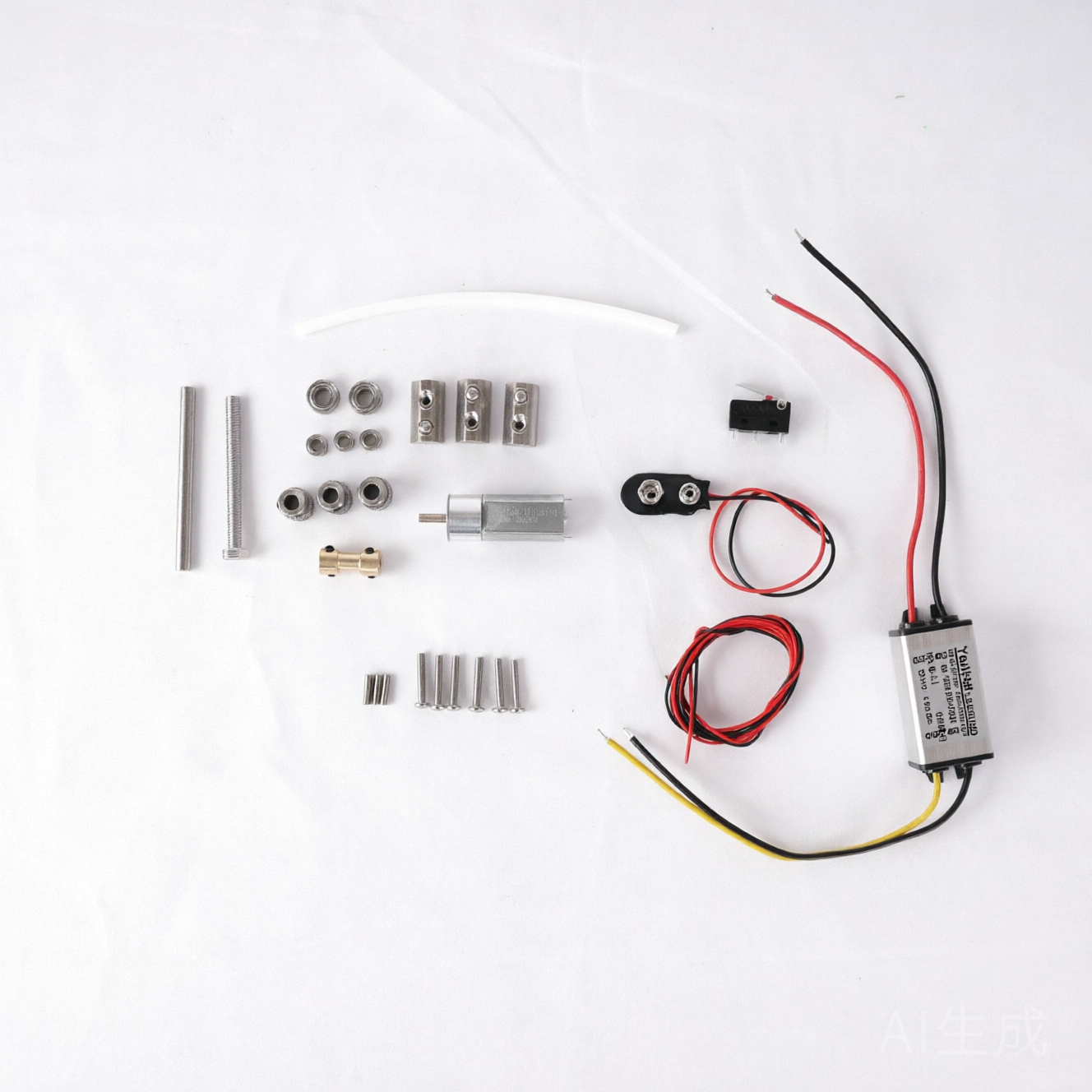

From a cost perspective, the larger motor version can be a practical choice, especially if you are sourcing components yourself. While the motor itself is more expensive, the simplified design replaces a multi-gear system with a basic shaft coupler, helping offset the overall cost difference.
In summary, this product offers a flexible and thoughtfully engineered solution for multi-filament handling on the XL platform. Whether you prioritize compactness or higher performance, both versions are designed with ease of installation, reliability, and minimal system interference in mind.
